TSP Method Glass Microfiber Filter
Products
Click image to view full sizeItem-Name:
Specification:
TSP Method Glass Microfiber Filter
Specification:TSP Method Glass Microfiber Filter
Size: 8 "x10" (20cmX25cm)
Material: glass fiber filter paper
Thickness: 330μm
Nominal Pore Size: 1.5um
Air Flow: 60
Maximum Operating Temp: 550°C
Filtering Effect: 99.98%
More-Details:
For use in ambient air monitoring with Total Suspended Particulate (TSP) samplers.
Refer to the U. S. Environmental Protection Agency (EPA) method 40 CFR 50, Appendix B.
◆ Features

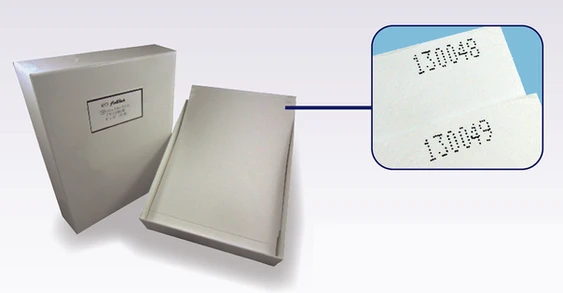

► Printed stamps, Easy to track.
► Compartment protection. Filter papers during transport and use are not easy to be damaged.
| TSP Filter Specification | |
| Model No. | M-GHA0810N150M |
| Size | 8" x 10" (20 x 25cm) |
| Material | Borosilicate glass w/o binder |
| Nominal Pore Size | 1.5um |
| Thickness | 330um |
| Water Flow L/min/cm² at 0.3bar by water | 250 |
| Air Flow L/min/cm² at 0.7bar (70kPa. 10psi) | 60 |
| Maximum Temperature | 550°C |
| Filtration Efficiency | 99.98% |
| TSP Cross Reference Guide | ||
| Finetech | Whatman | PALL |
| M-GHA0810N150M | EPM2000 | A/E |
More Products
Glass Fiber Filter for SS or TSS
Size: 47mm Material: glass fiber filter paper Nominal Pore Size: 1.5um Withstands temperatures till 550℃. Recommended for determining total suspended solids in water (TSS/standard method 2540D) MG 550 is used for determining total suspended solids in water, removal of turbidity, and filtration of bacterial cultures. Grade 161 is used for a wide range of laboratory applications. It is recommended for water pollution monitoring, cell harvesting, liquid scintillation counting, and air pollution monitoring. SS Filter Specification Model No. M-GHA047N150M Size 47mm Filter Material Borosillicate glass without binder Thickness 330μm Nominal Pore Size 1.5μm Water Flow Rate - mL/min/cm2 at 0.3 bar water 250 Water Flow Rate - mL/min/cm2 at 0.7 bar(70 kPa, 10psi) 60 Maximum Operating Temperature Air-550°C Typical Aerosol Retention 99.98% SS Cross Reference Guide Finetech Whatman E-D Scientific Specialties PALL M-GHA047N150M 934-AH 161 A/E
Binder-free Glass Microfiber Filter
◆ Finetech-Glass Microfiber Filter Micro-glass fiber filters offer high efficiency, sub-micron particle retention combined with high permeability and high dust holding capacity. Micro-glass filters are made of high-purity borosilicate glass microfibers that are biologically inert and resistant to most solvents and reagents with the exception of hydrofluoric acid and highly concentrated alkali solutions. Binder-free grades are temperature resistant to about 500℃. Grade MGHA can withstand temperatures to 550℃. Grades with binders can resist temperatures of about 180℃ and brief exposures to 250℃. Finetech® Glassfiber Grade Guide Model No. Basic Weight (g/m²) Thickness (mm) Particle Retention in Liquids (um) Pressure Drop* (mbar) MGA 52 0.23 1.6 38 MGB 143 0.7 1 95 MGC 52 0.24 1.2 55 MGD 120 0.53 2.7 140 MGF 75 0.45 0.7 120 MGG 65 0.28 1.5 30 MGHA 65 0.3 1.5 - *A = 10 cm², flow velocity 400 cm²/sec Glassfiber Cross Reference Guide Finetech Whatman E-D Scientific Specialties Advantec MGA GF/A 111 GA-55 MGB GF/B 121 GB-140 MGC GF/C 131 GC-50 MGD GF/D 141 GD-120 MGF GF/F 151 GF-75 MGHA 934-AH 161 N/A
Glass Fiber Filter for TCLP
◆ Description: Toxicity characteristic leaching procedure (TCLP) is a soil sample extraction method for chemical analysis employed as an analytical method to simulate leaching through a landfill. The testing methodology is used to determine if a waste is characteristically hazardous, i.e., classified as one of the "D" listed wastes by the U.S. Environmental Protection Agency (EPA). The extract is analyzed for substances appropriate to the protocol. TCLP Filter Specification Model No. M-GF142N070M Typical Applications U.S.EPA Method 1311 Size 142mm Filter Material Borosillicate glass without binder Thickness 0.45mm Nominal Pore Size 0.7μm Pressure Drop 520(pa) at 5.3 cm/s TCLP Cross Reference Guide Finetech Whatman E-D Scientific Specialties Advantec M-GHA047N150M GF/F 151 GF 7
