Vacuum driven sterile filter cup

Products

Item-Name:

Vacuum driven sterile filter cup

Specification:

Filter Membrane:PVDF、PES

Capacity : 500 mL

Membrane Pore Size:0.22、0.45μm

Membrane Diameter:47 mm

Made in Taiwan  Cat No : ST-FC500

Disposable Filter Unit

More-Details:

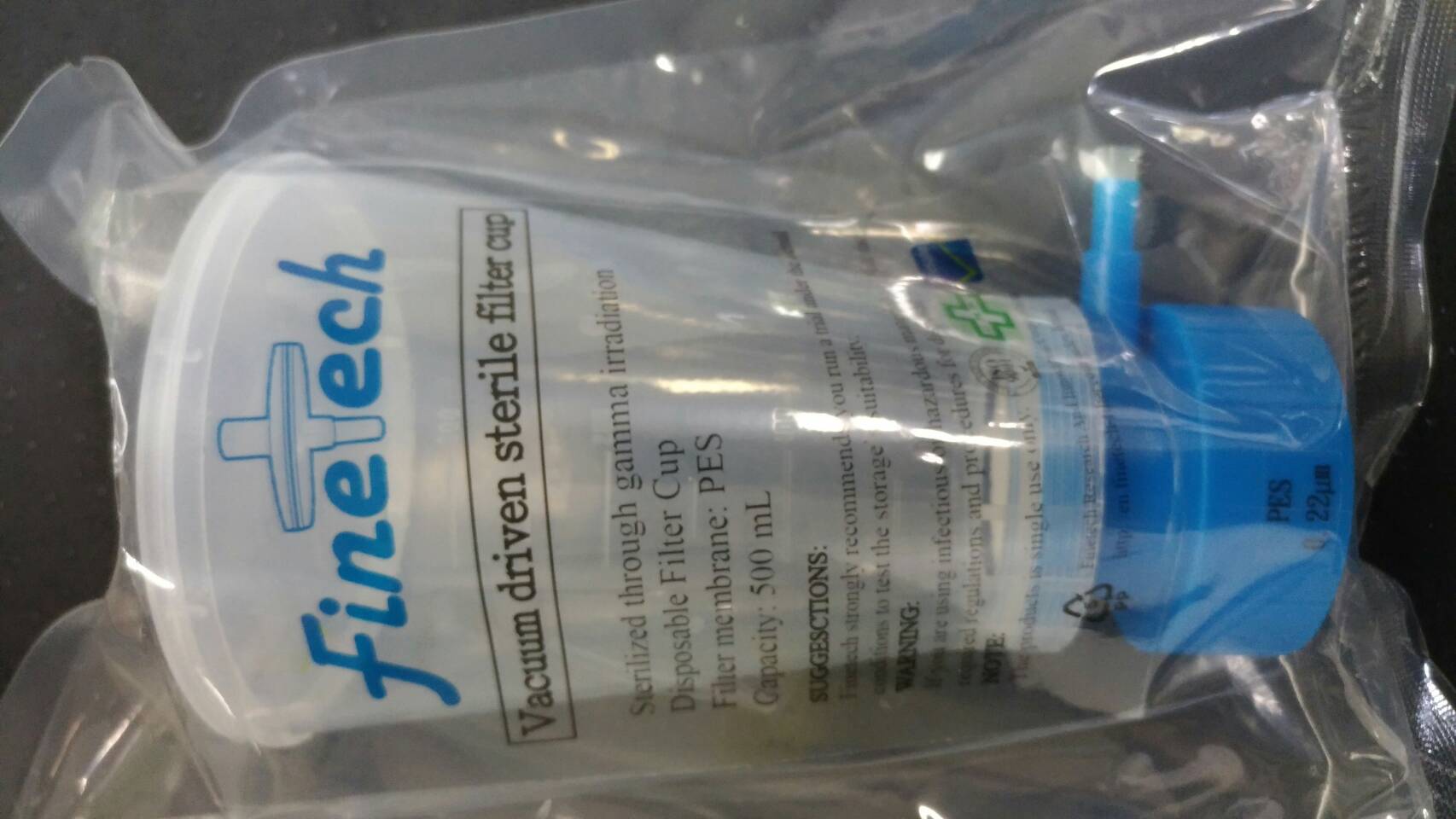

Vacuum driven sterile filter cup

◆Sterilized through gamma irradiation

◆Filtration Area, cm : 15.2

◆Hold-up Volume,mL : 3

◆Bacterial Retention : 0.22 micron pore size : 1 x 10-7 cfu per cm² (Brevundimonas diminuta)



Quick-Connect Technology streamlines your laboratory operations and improves throughput. The Vacuum filter cup is specifically designed for microbiological and analytical quality assurance. While it can also act as a sterile funnel, the filter cup provides rapid filtration for the conventional microbiological analysis of drugs, cosmetics, food, beverages, water, and other liquids. The funnel was designed with a conical shape for faster filtration. The funnel materials is made of polypropylene and has sufficient elasticity for snap-fit closure. Also, due to the material, liquids does not stick to the sides of the funnel.



The filter cup can be easily disassembled and the filter membrane can be replaced with a membrane of your choice.



STORAGE SUGGESTION:

Finetech strongly recommends that you run a trial under actual conditions

to test the suitability of the bottles' storage.



WARNING:

If you are using infectious or hazardous materials, please follow the required

regulations and procedures for disposal.



NOTE:

When sterility is required, this product is single use only.



TEST RESULT:



PACKAGE STYLE:
